AURORA-3C: COMPACT 3 PERSON PERSONAL SUBMARINE

personal small private submarines view of 3 person.

AURORA PERSONAL SUBMARINE TECHNOLOGY

The AURORA-3C personal submarine is a compact private submersible in size and light in weight, that holds 1 pilot and 2 passengers, and is a 1 Atmosphere, ABS or DNV-GL Classed, vessel with a depth rating of up to 470m (1542ft). The configuration of this private submersible provides the occupants an exceptional view, unobstructed by top hatches and side pontoons and offers the largest spacious cabin space compared to any other private submarine in its low weight category. The personal submarine is horizontal when underwater but is tail up when docked to a yacht at surface and provides this private submersible a secure walking deck for safe boarding of passengers.


Optimal Geometry
personal small private submarines Aurora-3c showing greater field of view from its cabin.

PERSONAL SUBMARINE EXCELLENT FIELD OF VIEW

The Aurora-3C personal submarine field of view is greatly enhanced by moving the access hatch away from the top of the window into a separate compartment behind the main cabin. The personal submarine unique ability to tilt at surface provides an extremely stable platform for boarding from a yacht and does not require obtrusive forward pontoons that severely restrict peripheral viewing. A specifically designed aft section on the private submersible provides an ideal docking configuration that can be firmly secured to a yacht, as opposed to some awkward geometry. This well thought out approach for this personal submarine, derived from experience is important in ensuring safety and comfort for operating the personal submarine from a yacht, even in rough sea conditions.

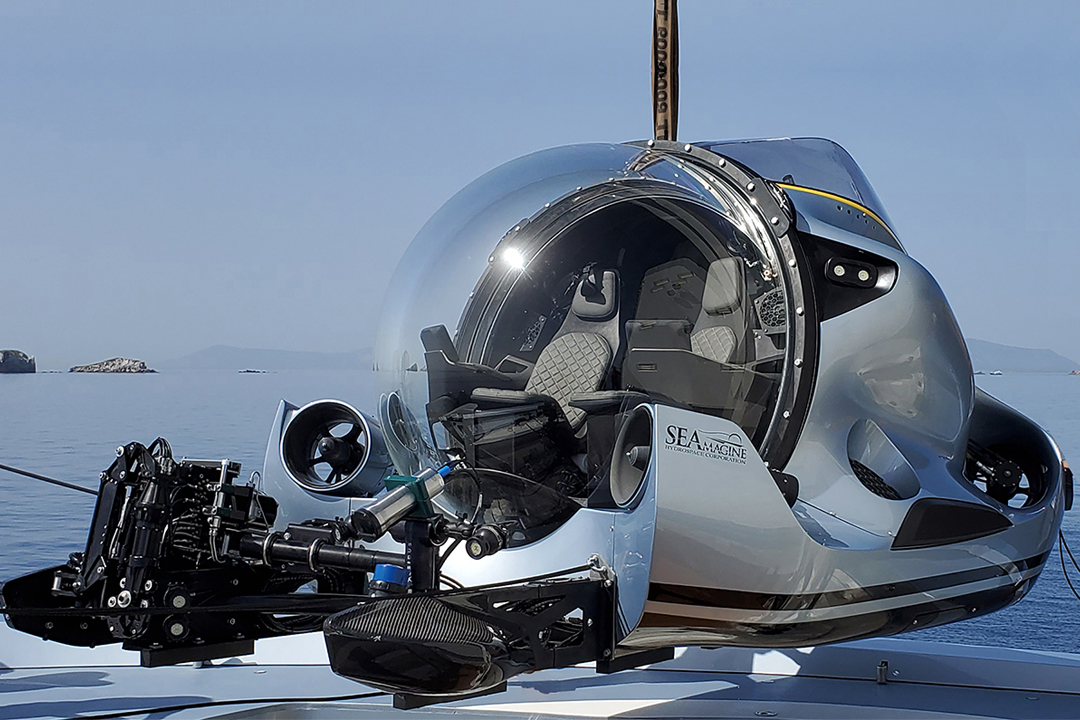

personal small private submarines AURORA 3C person model side view.

SURFACE OPERATIONS
personal small private submarines Aurora large entry hatch view.

SAFE PERSONAL SUBMARINE BOARDING

When floating at surface, the Aurora private submersible offers a solid and stable platform with a high freeboard and a horizontal walking deck, assisted with telescoping hand rails, to guide passengers from a yacht to the large top hatch on the submersible. The purposely designed stern on this personal submarine provides a secure docking arrangement for the personal submarine to enhance the convenience of the boarding process from a yacht, important for rough weather operation.


Easy Entry Configuration

COMFORTABLE PERSONAL SUBMARINE CONFIGURATION

The personal submarine is tail up when at surface and the top deck is horizontal. In this configuration the private submersible cabin seats are tilted back so that occupants are sitting horizontally. Once the yacht passengers have boarded the submersible and the hatch is closed, the personal submersible will submerge and its angle will change to a normal attitude once underwater. Accordingly, the cabin seats return to a horizontal position for the remainder of the dive.

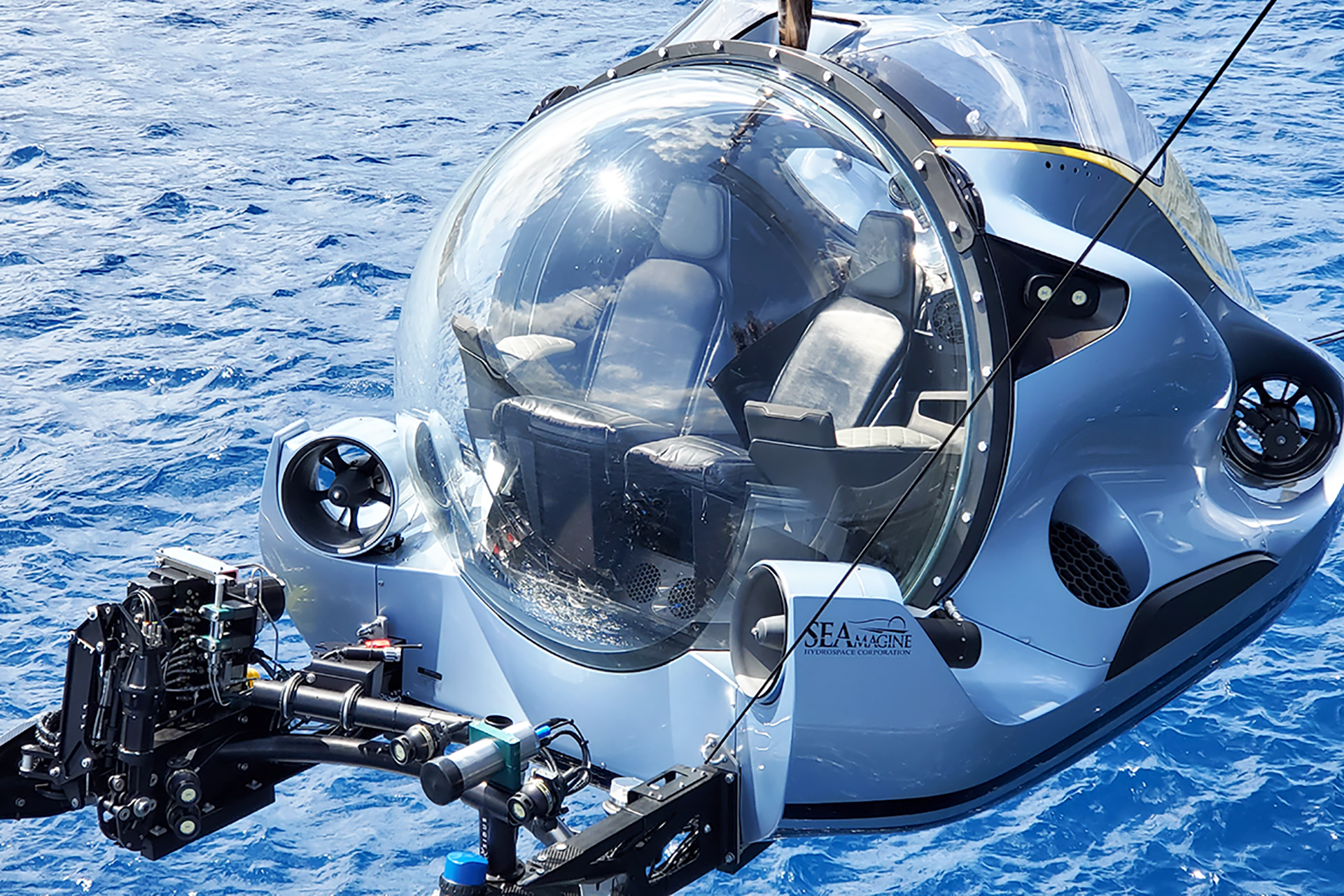

personal small private submarines Aurora front view.

COMPACT SIZE & LIGHT WEIGHT

LARGE COMFORTABLE INSIDE DIAMETER WHILE STILL HAVING LOW DRY WEIGHT

The AURORA-3C personal submarine offers the largest inside diameter for the occupants compared to any other private or personal submersible in its weight category. The compact configuration allows the personal submarine to be stored or transported in a standard shipping container. Futhermore, the submarine's low height and even lower hoist point makes this submersible ideal for setup in confined spaces without compromising on comfort, practicality, robustness, and performance.

personal small private submarines Aurora front view.

General personal submarine specifications

COMPACT 3 PERSON MODEL - ABS or DNV-GL Classed Submarine - 470 M Depth Rated



GENERAL PRIVATE SUBMARINE SPECIFICATIONS

Aurora submarines 3 person pdf file. AURORA-3C MODEL SPECIFICATIONS

GENERAL
Designer / Manufacturer SEAmagine Hydrospace Corporation
Model AURORA-3C
Number of Occupants 2 Passengers + 1 Pilot
Maximum Operating Depth 470m (1540 ft)
Classification ABS or DNV-GL
Additional Approval Cayman Islands Shipping Registry
DIMENSIONS
Length 3.354 m (132 in)
Width 2.502 m (99 in)
Height 1.85 m (73 in)
Hoist Point Height 1.65 m (65 in)
Dry Weight 3800 Kg (8377 lbs)
Size and Weight Can Be Customized
Cabin Payload 340 Kg (750 lbs)
Cabin Inside Diameter 1.51 m (59.5 in)
Hoist Arrangement Single Point Hoist
PROPULSION
Maximum Speed 3 Knots
Propulsion Type DC Electric, Venturi Shaped Thrusters
Horizontal Propulsion 4 x 10HP Thrusters
Vertical Propulsion 2 x 10HP Thrusters
Propulsion Mission Time 8 Hours
LIFE SUPPORT SYSTEM
Mission Time 8 Hours
Reserve Capacity 96 Hours
Oxygen Monitoring Dual O2 Sensors
CO2 Monitoring Dual CO2 Sensors
Oxygen Delivery System Flow Control
Backup Breathing Systems Standalone Independent Units
POWER CAPACITY
Battery Type Lithium Type
Total Power Capacity 40 KWH
Charging Time 5 - 7 Hours

INCLUDED WITH PRIVATE SUBMERSIBLE

ABS or DNV-GL Classification
Underwater Communication System for Submersible and Topside
Topside USBL (Ultra Short Baseline) Tracking Hand Carry Console
Dual Frequency Forward Looking Sonar
5 X LED Flood Lights + 2 X LED Spot Lights
Doppler Velocity Log (DVL) Navigation on Submersible
USBL GPS Navigation Software on Submersible
External Wet Joystick for Surface Handling
Private Submersible Battery Charger
Color Customized to Client's Request


OPTIONAL ADDITIONAL PRIVATE SUBMERSIBLE EQUIPMENT

Robotic Manipulators Arms 5 to 7 Axis Models
Underwater HD Video Systems with Pan and Tilt Units
Fly-Out Mini ROV System with HD Camera, Cutter, and Grabber
SEAmagine 360 Degree Underwater HD Camera System
...More Additional Subsea Equipment Available Upon request

SEAmagine Personal Submersible Pilot Training Program

SEAmagine provides a well-structured private or personal submersible pilot training program developed over many years and initial developed in conjunction with the US Coast Guard. The program includes supporting the private submersible's initial setup on a yacht and train submarine pilots as well as support crews to handle submersible operations aand to handle general maintenance.

THE AURORA PERSONAL SUBMERSIBLE UNIQUE BOARDING ARRANGEMENT

The Aurora perosnal submarine's unique entry configuration from a yacht provides a safe horizontal deck with rails leading to a large hatch. At surface, the private submarine adopts a tail up attitude giving a horizontal walking deck, and is docked aft to the yacht. The large docking rail ensures a secure docking configuration for tie down to the yacht. The top deck hand rails are raised for boarding the private vessel and lowered for diving.

personal small private submarines Aurora-3C docked to a yacht for boarding-7.
The AURORA-3C private or personal submarine docked to the yacht topside support vessel for boarding passengers

personal small private submarines Aurora configuration when it is at surface for boarding.
The AURORA-3C has a tail up position for better docking and ease the boarding process. After boarding the submersible levels out to drive at surface to the dive site.

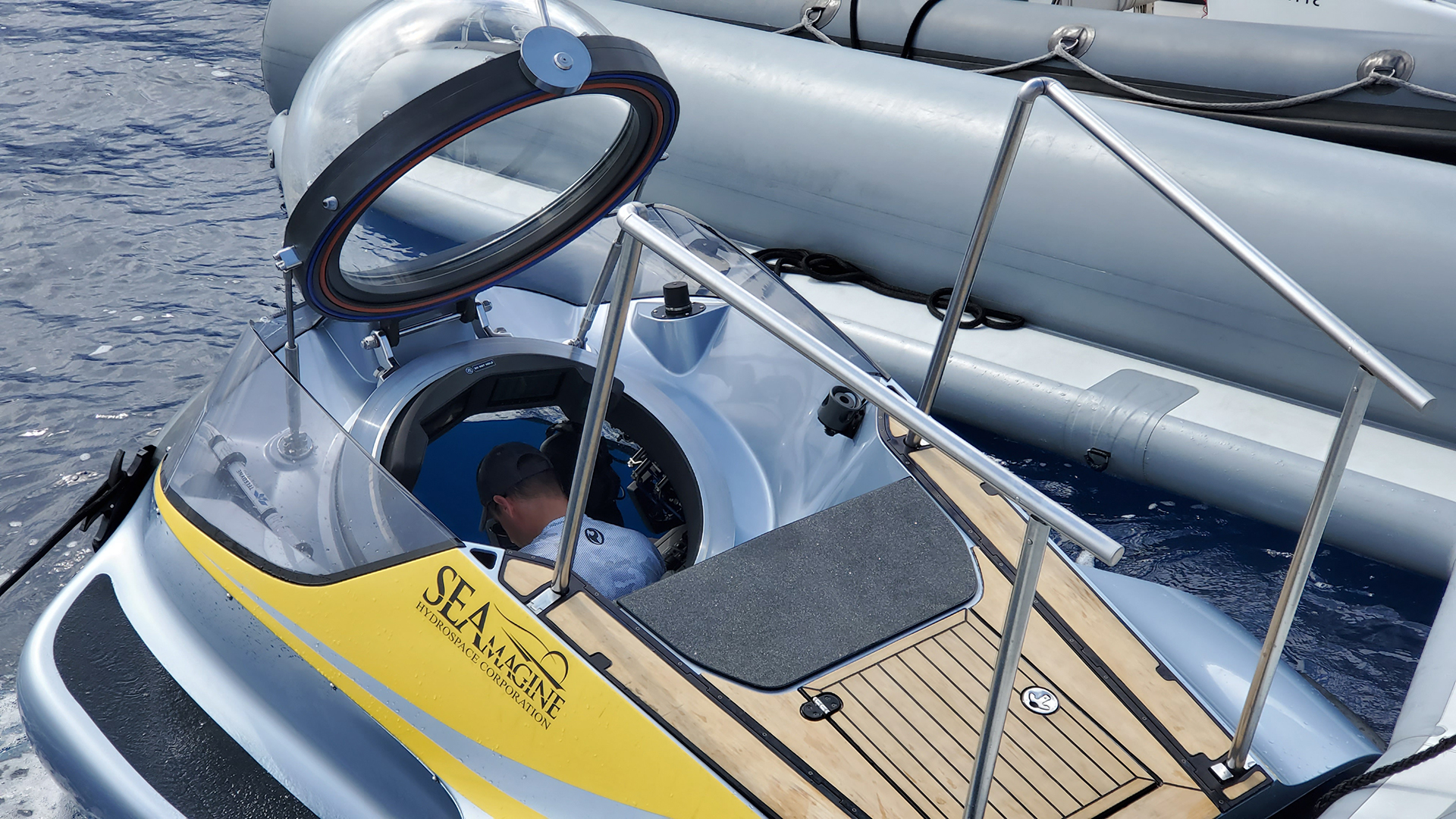

personal small private submarines Aurora configuration dome acrylic hatch.
The private submersible's large entry hatch is configured as an acrylic transparent dome and provides the pilot additional upward and rear view.
