AURORA-5: 5 PERSON LUXURY SUBMARINE

personal small private submarines Aurora 5 person model side view.

AURORA LUXURY SUBMARINE

SEAmagine's innovative Aurora technology is a new approach to the design of a personal luxury submarine, maximizing the field of view of the personal submarine and providing an unparalleled vista. The occupants from this private luxury submarine have a view, unobstructed by top hatches and side pontoons and provides the sensation of entering the underwater world, as opposed to simply observing it. When floating at surface this private luxury submarine has a high freeboard making a stable platform for people to walk on. Telescopic handrails come up from the top deck of this private luxury submarine to provide a safe environment for people to board in a variety of sea states. The Aurora personal luxury submarine offers a solid and straight back stern designed to securely dock to the support yachts at surface, further improving safety and logistics.


Optimal Geometry
personal small private submarines Aurora 5 person model top view.

LUXURY SUBMERSIBLE FIELD OF VIEW

The Aurora private luxury submarine field of view is greatly enhanced by moving the access hatch away from the window into a separate compartment behind the main cabin of the personal or private submersible. Its unique ability for the personal submarine to tilt at surface provides an extremely stable platform for boarding, which does not require obtrusive forward pontoons that severely restrict peripheral viewing from inside the private submarine. A specifically designed aft section on this private luxury submarine provides a secure configuration that can be firmly tied to their support yachts, providing a stable platform for boarding on the private submersible. This well thought out approach, the product of design innovation and operating experience, is important in ensuring safety and comfort of this personal submarine for boarding from yachts, even in rough sea conditions.




5 MANNED LUXURY SUBMARINE ARRANGEMENT
personal small private submarines Aurora 5 person model front view.

LUXURY SUBMERSIBLE COMFORT

The AURORA 5 person luxury submarine can seat 4 passengers and 1 pilot with personal comfort. The space inside the private submersible is configured optimally for the five seats. During boarding, the rear private sub pilot seat folds away to the side providing clear access for the passengers to the personal submersible stair case. The pilot seat and controls are situated at the center rear of the personal luxury submersible and has clear view in all directions.

Luxury Submarine Technical Overview

5 PERSON MODEL - ABS or DNV-GL Classed Submarines - 300m to 1000m Depth Rated

GENERAL LUXURY SUBMERSIBLE SPECIFICATIONS

seamagine aurora 5 person specs sheet. AURORA-5 PERSON SUBMARINES SPECIFICATIONS

GENERAL
Designer / Manufacturer SEAmagine Hydrospace Corporation
Model AURORA-5
Number of Occupants 4 Passengers + 1 Pilot
Maximum Operating Depth 300m (984 ft) to 1000m (3300 ft)
Classification ABS or DNV-GL
Additional Approval Cayman Islands Shipping Registry
DIMENSIONS
Length (excl. Bumper) 4.11 m (162 in)
Length (incl. Bumper) 4.37 m (172 in)
Width 2.79 m (110 in)
Height 2.40 m (95 in)
Dry Weight 7484 Kg (16,500 lbs)
Size and Weight Can Be Customized
Cabin Payload 500 Kg (1100 lbs)
Hatch Diameter 0.71 m (28 inches)
Hoist Arrangement Single Point Hoist
PROPULSION
Maximum Speed 3 Knots
Propulsion Type DC Electric, Venturi Shaped Thrusters
Horizontal Propulsion 4 x 10HP Thrusters
Vertical Propulsion 2 x 10HP Thrusters
Propulsion Mission Time 8 Hours
LIFE SUPPORT SYSTEM
Mission Time 8 Hours
Reserve Capacity 96 Hours
Oxygen Monitoring Dual O2 Sensors
CO2 Monitoring Dual CO2 Sensors
Oxygen Delivery System Flow Control
Backup Breathing Systems Standalone Independent Units
POWER CAPACITY
Battery Type Lithium Type
Total Power Capacity 40 KWH
Charging Time 5 - 7 Hours

INCLUDED WITH PERSONAL SUBMERSIBLE

ABS or DNV-GL Classification
Underwater Communication System for Private Submersible and Topside
Topside USBL (Ultra Short Baseline) Private Sub Tracking Hand Carry Console
Dual Frequency Forward Looking Sonar
5 X LED Flood Lights + 2 X LED Spot Lights
Doppler Velocity Log (DVL) Navigation on Personal Submersible
USBL GPS Navigation Software on Private Submersible
External Wet Joystick for Surface Handling
Personal Submersible Battery Charger
Color Customized to Client's Request


OPTIONAL ADDITIONAL PERSONAL SUBMERSIBLE EQUIPMENT

Robotic Manipulators Arms 5 to 7 Axis Models
Underwater HD Video Systems with Pan and Tilt Units
Fly-Out Mini ROV System from Private Sub with HD Camera, Cutter, and Grabber
SEAmagine 360 Degree Underwater HD Camera System
...More Additional Subsea Equipment Available Upon request

SEAmagine Submersible Pilot Training Program

SEAmagine provides a well-structured pilot training program for this personal luxury submarine, developed over many years and initially in conjunction with the US Coast Guard. The program includes support during the private luxury submarine initial setup on its yacht and the training of the private sub pilots and support crew to handle personal submersible operations as well as general maintenance.

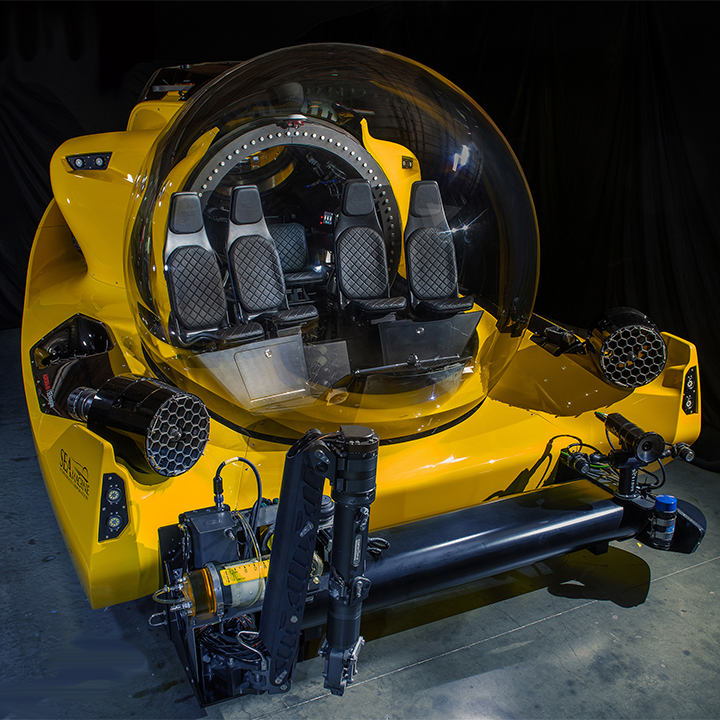

personal small private submarines Aurora 5 person model isometric view.

Aurora 5 Person Personal Luxury Submarine For Yachts
