OCEAN PEARL - 2 PERSON MINI SUBMARINE

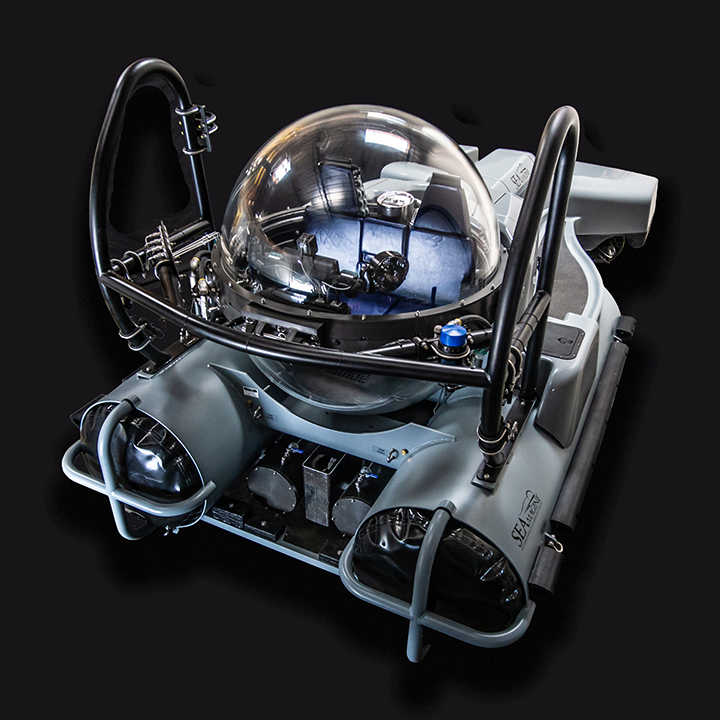

Personal Small Private Submarines Ocean Pearl 2 Person Technology.

MINI SUBMARINE FOR A YACHT

The Ocean Pearl mini submarine is a robust, safe, and practical 2 person (1 pilot + 1 Passenger) personal submersible that offers an excellent field of view to the occupants. This mini personal submarine opens as a clamshell and allows for easy entry and exit. In surface mode, the patented flotation systems permit the private submarine to float high above the water line with a high freeboard when docked to a yacht. When submerged, the personal submersible is positively buoyant at all times and, should the thrusters stop, this mini personal submarine will gently rise back to the surface. Underwater, the private submersible remains horizontal at all times and does not roll or pitch. When the mini personal submersible is near the surface at the end of the dive, the flotation bladders are re-inflated such that the private submarine floats back on the water’s surface at which point it is docked back to the yacht.


LARGE ENTRY HATCH

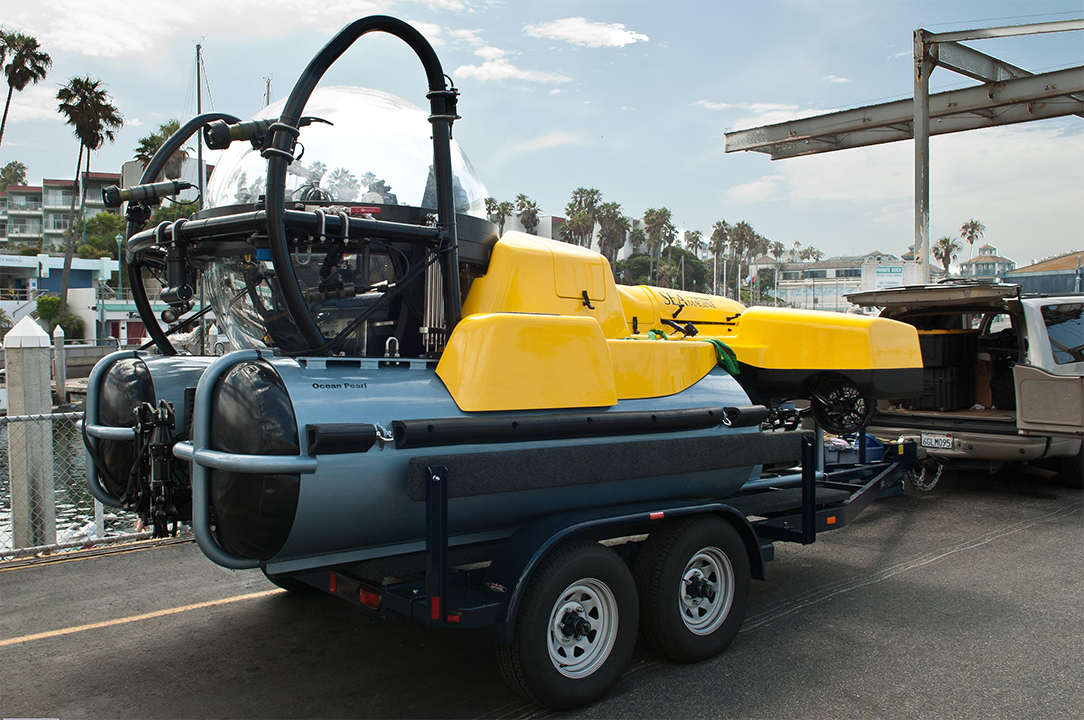

Personal Small Private Submarines Ocean Pearl with large Open Hatch.

MINI SUBMARINE COMFORTABLE BOARDING FROM YACHTS

The Ocean Pearl private submersible acrylic cabin is a clam shell design that fully opens in half for comfortable boarding and exit from the support luxury yacht. The mini personal submersible is launched from the yacht unmanned and floats high above the water line when on surface and is readily docked at the swim deck. The external joystick system allows the crew to drive the mini private submarine at surface without requiring the cabin to be opened until it is securely docked to the yacht or support tender. Once launched, the mini personal submarine can perform multiple dives in a day without the need of hoisting it back on deck of the ship. Between dives, a regular scuba tank is replaced on the private submersible to replenish its flotation air ballast. The personal submarine life support is provided by a large rebreather system. Oxygen is replaced as used and CO2 is removed by scrubbers so that normal air breathing levels and a 1 atmosphere pressure is maintained in the private sub. The mini personal submarine clam shell design is robust and can be opened from the outside by the yacht crew or from the inside by the pilot.


UNDERWATER OPERATIONS

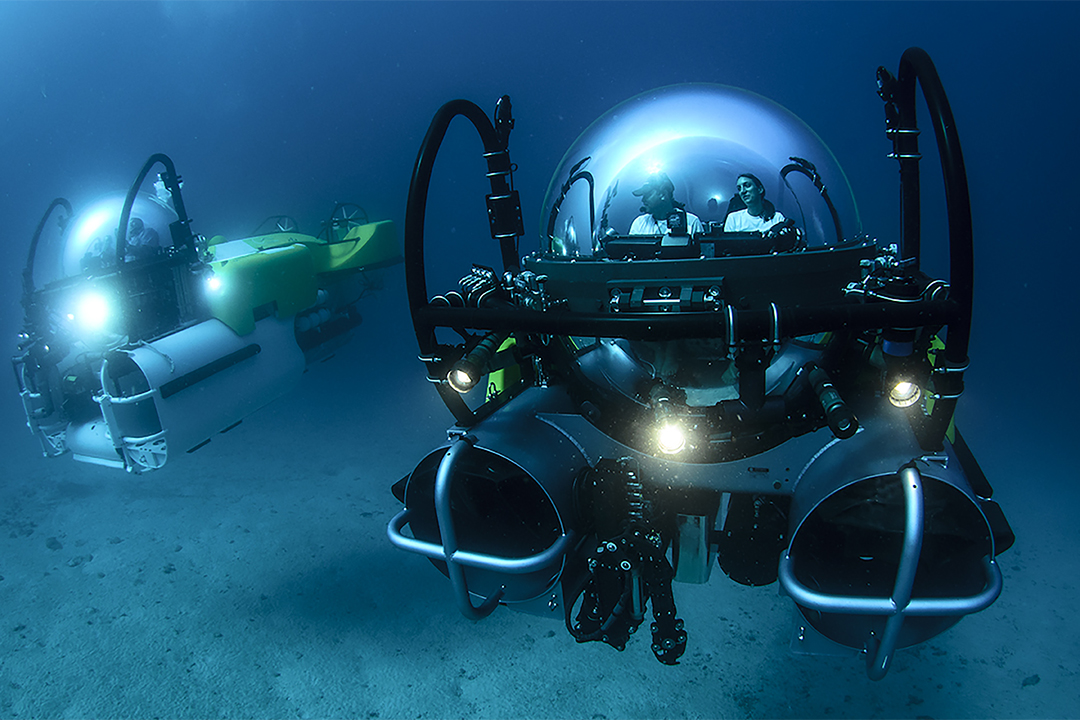

Personal Small Private Submarines Ocean Pearl hovering Underwater.

SMALL POWERFUL MINI SUBMARINE AND PROFESSIONAL SUBMERSIBLE

This private mini submarine maintains positive buoyancy at all times underwater and it is the vertical thruster that keeps the personal submersible underwater. If the vertical propulsion is stopped, the personal submersible will always gently rise back to surface. The Ocean Pearl mini private submarine can readily hover at specific location and accurately maintain its position, ideal for a luxury yacht and for underwater intervention work. This private submarine has considerable spare buoyancy ballast that permits high payload recovery. The Ocean Pearl personal submarine has a great field of view in all directions from inside the cabin including directly below the private sub itself which is important for up close observation, filming, or handling a robotic manipulator.

Downward view from Ocean Pearl Cabin

Mini Submarine and Robust Submersible - Technical Overview

2 PERSON MODEL - ABS Classed Submarines - 150m to 1000m Depth Rated

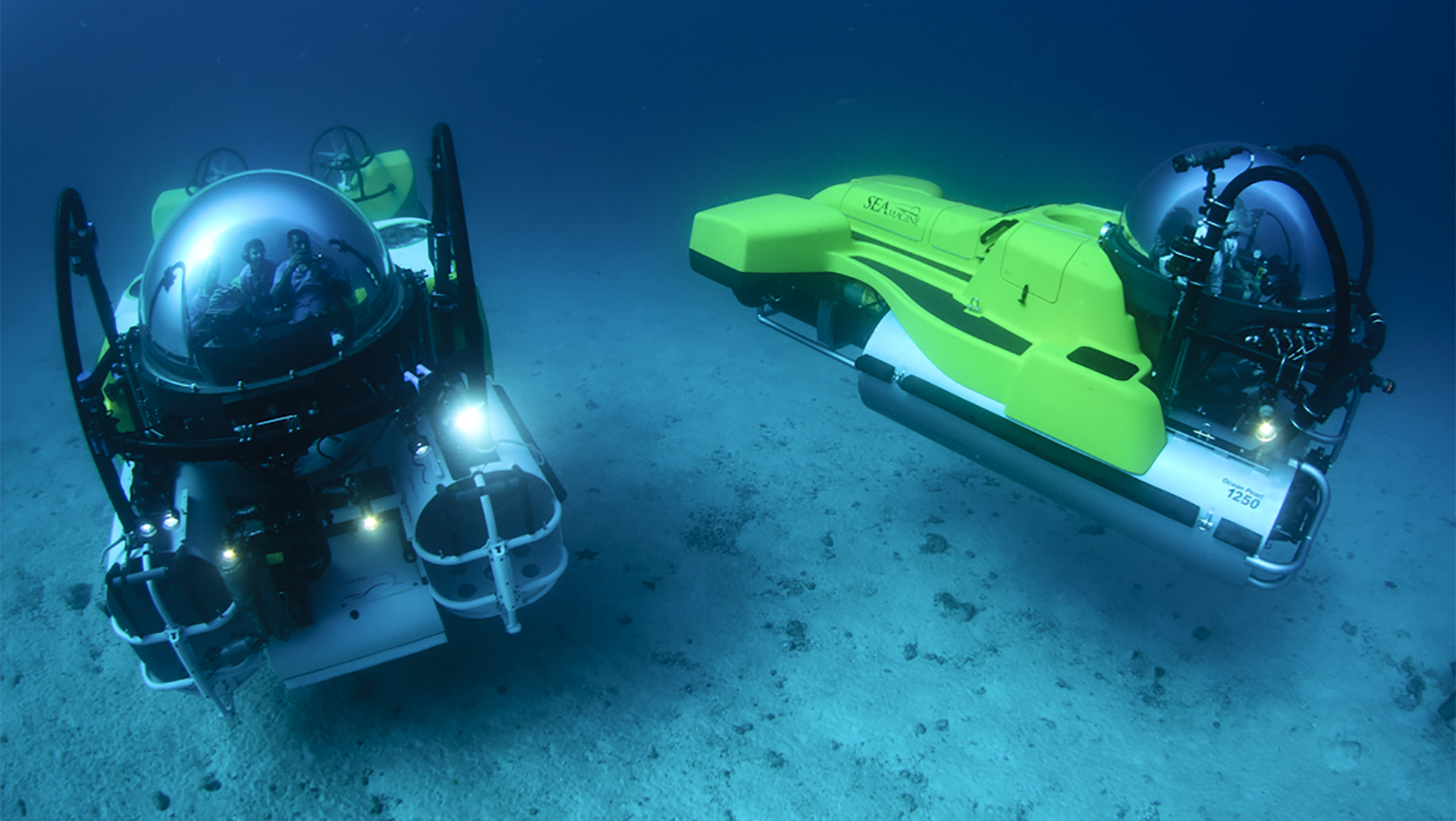

Personal Small Private Submarines Ocean Pearl 2 Person hovering at the seafloor in the Bahamas.

GENERAL SUBMERSIBLE SPECIFICATIONS

ocean pearl submarines specification sheet. OCEAN PEARL 2 PERSON SPECIFICATIONS

GENERAL
Designer / Manufacturer SEAmagine Hydrospace Corporation
Model Ocean Pearl
Number of Occupants 1 Pilot + 1 Passenger
Maximum Operating Depth 150m (500ft) to 1000m (3300ft)
Classification American Bureau of Shipping
Additional Approval Cayman Islands Shipping Registry
DIMENSIONS
Length 4.53 m (178 in)
Width 2.44 m (96 in)
Height 2.25 m (89 in)
Dry Weight 3200 Kg - 5000 Kg (7055-11,000lbs)
Size and Weight Can Be Customized
Cabin Payload 227 Kg (500 lbs)
Hoist Arrangement Four Point Hoist
PROPULSION
Maximum Speed 3 Knots
Propulsion Type DC Electric, Venturi Shaped Thrusters
Horizontal Propulsion 2 x 10HP Thrusters
Vertical Propulsion 1 x 10HP Thrusters
Propulsion Mission Time 6 Hours
LIFE SUPPORT SYSTEM
Mission Time 6 Hours
Reserve Capacity 96 Hours
Oxygen Monitoring Dual O2 Sensors
CO2 Monitoring Dual CO2 Sensors
Oxygen Delivery System Flow Control
Backup Breathing Systems Standalone Independent Units
POWER CAPACITY
Battery Type AGM Lead Acid
Total Power Capacity 28 KWH
Propulsion Power Capacity 23 KWH
Instrumentation Power Capacity 5 KWH
Charging Time 5 - 7 Hours

INCLUDED WITH MINI SUBMERSIBLE

Full ABS (American Bureau of Shipping) Classification
Underwater Communication System for Mini Submersible and Topside
Topside USBL (Ultra Short Baseline) Private Sub Tracking Console
Dual Frequency Forward Looking Sonar
2 X LED Flood Lights + 6 X LED Spot Lights
Doppler Velocity Log (DVL) Navigation on Private Submersible
USBL GPS Navigation Software on Personal Submersible
External Wet Joystick for Surface Handling
Mini Submersible Battery Charger
Color Customized to Client's Request


OPTIONAL ADDITIONAL EQUIPMENT FOR SUBMARINES

Robotic Manipulators Arms 5 to 7 Axis Models
Underwater HD Video Systems with Pan and Tilt Units
Fly-Out Mini ROV System with HD Camera, Cutter, and Grabber
SEAmagine 360 Degree Underwater HD Camera System
...More Additional Subsea Equipment Available Upon request

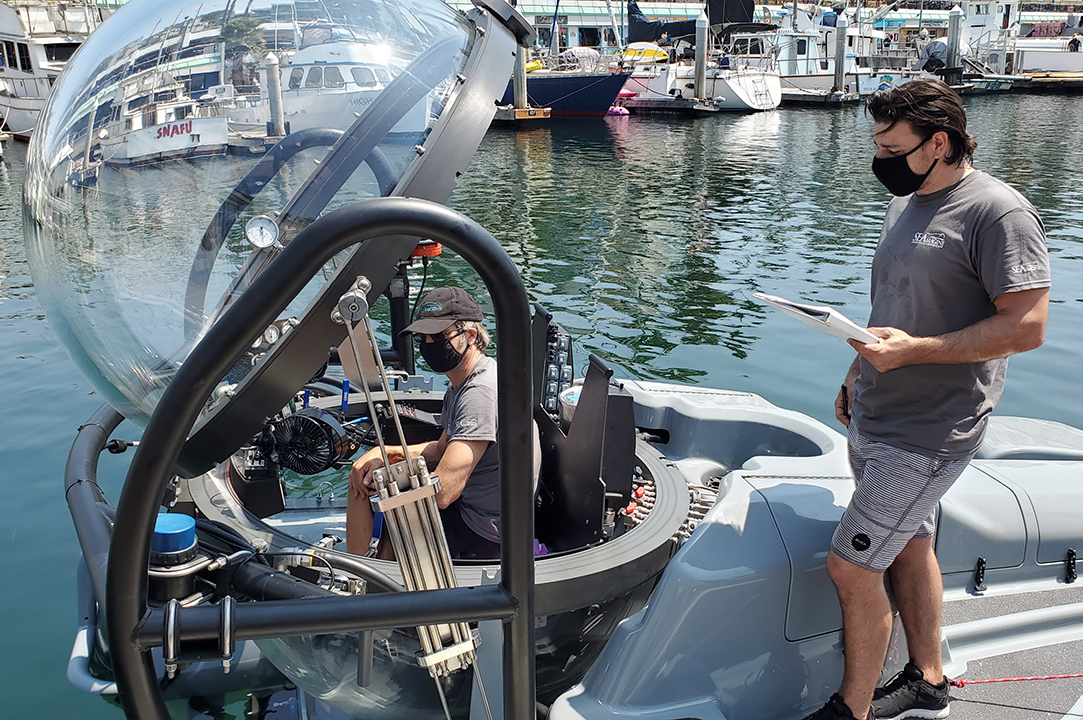

SEAmagine Personal Submersible Pilot Training Program for Crew

SEAmagine provides a well-structured pilot training program for its mini personal submarine, developed over many years and initially in conjunction with the US Coast Guard. The program includes support during the private submarine initial setup on the yacht, the training of private submarine pilots, and the training of support crew to handle the personal submersible operations as well as its general maintenance.

Personal Small Private Submarines Ocean Pearl model being tied down on a yacht.
